Specifications : 2024-0, -T3; 5052-0; 6061-T6, T4

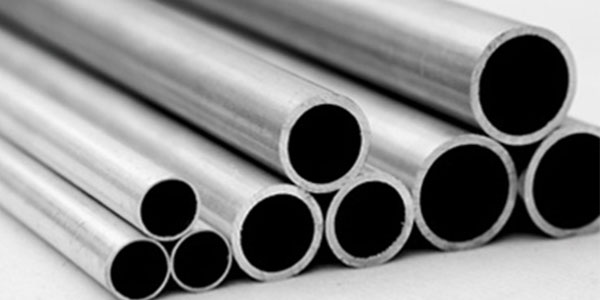

ALUMINIUM PIPES & TUBES
>
We are one of the leading supplier of Aluminum Pipes that are obtainable in various dimensions that facilitate their use in different industries. These are corrosion resistant and heat resistant rods that are used in fabricating various equipment of different industries.
Properties :
Resistance to corrosion
Longevity
Abrasion resistance
Tensile strength
Dimensionally correct
| Aluminum Pipe Size Chart |
| OM SIZE | OUTSIDE DIA (D) |
WALL THICKNESS IN MM (T) |
METRIC SIZE | ||||||
| SCH 10S | SCH 10 | SCH 40 S |
STD Weight | SCH 40 | SCH 80s | SCH 80 | |||
| 1/4 " | 13.72 | 1.65 | 2.24 | 2.24 | 2.24 | 3.02 | 3.02 | ||
| 3/8" | 17.15 | 1.65 | 2.31 | 2.31 | 2.31 | 3.2 | 3.2 | ||
| 1/2" | 21.34 | 2.11 | 2.77 | 2.77 | 2.77 | 3.73 | 3.73 | 15 | |
| 3/4" | 26.67 | 2.11 | 2.87 | 2.87 | 2.87 | 3.91 | 3.91 | 20 | |
| 1" | 33.4 | 2.77 | 3.38 | 3.38 | 3.38 | 4.55 | 4.55 | 25 | |
| 1 1/4" | 42.16 | 2.77 | 3.56 | 3.56 | 3.56 | 4.85 | 4.85 | 32 | |
| 1 1/2" | 48.26 | 2.77 | 3.68 | 3.68 | 3.68 | 5.08 | 5.08 | 40 | |
| 2" | 60.32 | 2.77 | 3.91 | 3.91 | 3.91 | 5.54 | 5.54 | 50 | |
| 2 1/2" | 73.02 | 3.05 | 5.16 | 5.16 | 5.16 | 7.01 | 7.01 | 65 | |
| 3" | 88.9 | 3.05 | 5.49 | 5.49 | 5.49 | 7.62 | 7.62 | 80 | |
| 3 1/2" | 101.6 | 3.05 | 5.74 | 5.74 | 5.74 | 8.08 | 8.08 | 90 | |
| 4" | 114.3 | 3.05 | 6.02 | 6.02 | 6.02 | 8.56 | 8.56 | 100 | |
| 5" | 141.3 | 3.4 | 6.55 | 6.55 | 6.55 | 9.52 | 9.52 | 125 | |
| 6" | 168.27 | 3.4 | 7.11 | 7.11 | 7.11 | 10.97 | 10.97 | 150 | |
| 8" | 219.07 | 3.76 | 8.18 | 8.18 | 8.18 | 12.7 | 12.7 | 200 | |
| 10" | 273.05 | 4.19 | 9.27 | 9.27 | 9.27 | 12.7 | 15.08 | 250 | |
| 12" | 323.85 | 4.57 | 9.52 | 9.52 | 10.31 | 12.7 | 17.47 | 300 | |
| 14" | 355.6 | 4.77 | 6.35 | 9.52 | 11.12 | 19.05 | 350 | ||
| 16" | 404.6 | 4.77 | 6.35 | 9.52 | 12.7 | 21.44 | 400 | ||
| 18" | 457.2 | 4.77 | 6.35 | 9.52 | 14.27 | 23.82 | 450 | ||
